Pressure Controls & Switches
The Brain of Your Well’s Pressure System
On a typical residential well, a pressure switch reads system pressure and switches power to the pump — turn on when pressure falls to cut-in, turn off at cut-out. That simple loop depends on good electrical contacts, correct spring adjustment, a working gauge, and a pressure tank that actually stores drawdown. When any piece is wrong, the pump short-cycles or runs until something overheats.
Klutz Well Drilling services pressure switches and related controls for homes and properties across North Manchester and surrounding Indiana communities. We treat switches as part of the whole pressure package: tank, piping, and pump all have to agree.
Schedule Service
When the Switch or Controls Need Help
- The pump will not start when pressure is low, or runs nonstop even at high pressure
- You hear rapid clicking at the pressure switch or control box
- Cut-in and cut-out pressures changed without anyone adjusting them
- You replaced the pressure tank but cycling still feels wrong
- A control box fault light is on or the pump trips overload when pressure builds
Why Professional Service Matters
Reliable Pump On / Off
The pressure switch tells the pump when to start and stop. When contacts are worn or settings drift, you get random no-water events or a pump that never rests — both hard on equipment.
Cut-In and Cut-Out That Match
Common bands like 30/50 or 40/60 need to agree with your tank precharge and plumbing. We set pressures so the system cycles a reasonable number of times per day, not every few seconds.
Controls Beyond a Basic Switch

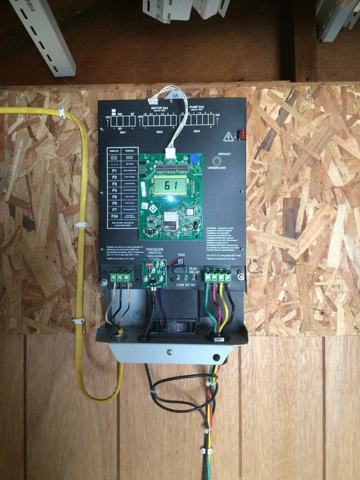

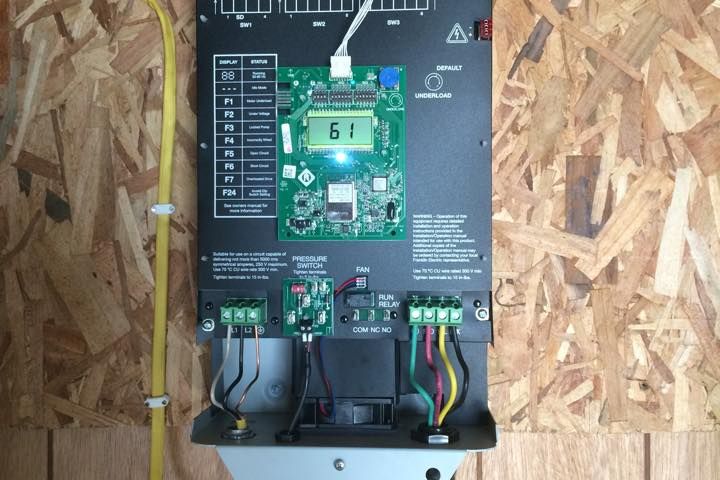

Some setups use pump protectors, low-pressure cutoffs, or control boxes. We service what you have and explain how it interacts with the switch and pressure tank.
Diagnosis, Not Just Parts Swapping
A bad switch can mimic a bad tank or vice versa. We verify pressure with a trusted gauge and watch real cycles before we recommend replacement.
How We Service It
Confirm the Symptom
We clarify whether the pump fails to start, fails to stop, chatters, or runs but pressure never builds — each pattern points to different causes in the control chain.
Test Pressure Behavior
Using the system gauge and controlled water use, we record cut-in and cut-out and compare them to the switch setting and tank precharge.
Repair or Replace
When the switch or related control is at fault, we install the correct type and rating, secure wiring, and set the differential the manufacturer and your pump expect.
Safety Check and Handoff
We confirm the pump stops at high pressure, that there are no exposed live parts, and that you know normal sounds and cycle timing after the repair.
Service Area
We serve North Manchester, Wabash, Warsaw, Huntington, Columbia City, Fort Wayne, and the surrounding Indiana communities.
View Full Service AreaWorks With Your Tank and Pump
Most cycling issues involve both pressure tanks and the switch. If the pump motor or wire is suspect, we coordinate with submersible pump or jet pump service. See well services for the full list.
Call Us
Call (260) 571-7380 or contact us online. If the switch is buzzing or smoking, turn off the well breaker first, then call.
